Figure 8 Cable
  • Model:GYTC8A

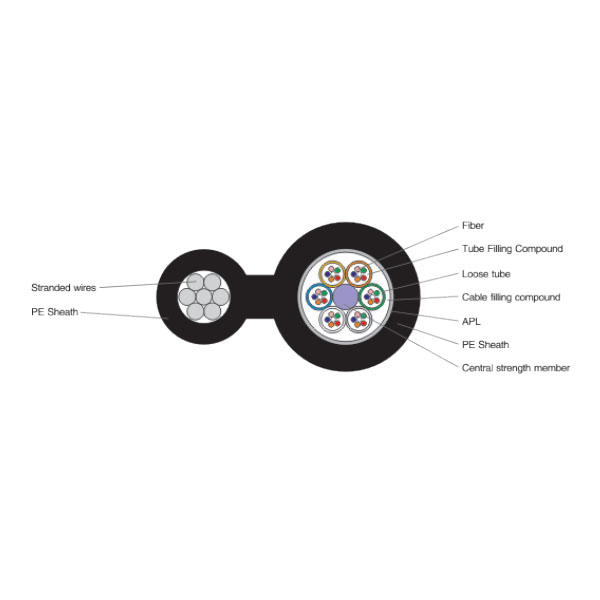

    ·The fibers,250um,are positioned in a loose tube made of a high modulus plastic. The tube are filled with a water-resistant filing compound.
    ·A steel wire, sometimes sheathed with polyethylene(PE)for cable with high fiber count, locateds in the center of core as a metallic strength member.
    ·The tubes and fillers are stranded around the strength member into a compact and circular cable core.After an Aluminum APL moisture barrier is applied around the cable core, this part of cable ·Accompanied with the stranded wires as the supporting part are completed with a PE sheath to be figure 8 structure.
    ·Figure 8 cable GYTC8Y,GYTC8S are also available on request.This type of cable is specifically applied for self-supporting aeral installation.
    ·Which is filled with the filling compound to protect it from water ingress.The cable is completed with a PE sheath.

    ·High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost
    ·Good mechanical and temperature performance
    ·High strength loose tube that is hydrolysis resistant
    ·Special tube filling compound ensure a critical protection of fiber.
    ·The following measures are taken to ensure the cable watertight;
    ·Loose tube filling compound
    ·100% cable core filling
    ·APL moisture barrier

    ·GYTC8A cable complises with Standard YD/T901-2009 as well as IEC 60794-1.
